Linkswell | 2018+ Jeep Wrangler JL / Gladiator JT T-Style XL Radio

This is a massive 15.6" android touch screen! Please note, some factory options may not be retained.

• 15.6″ HD touch screen Android Tablet

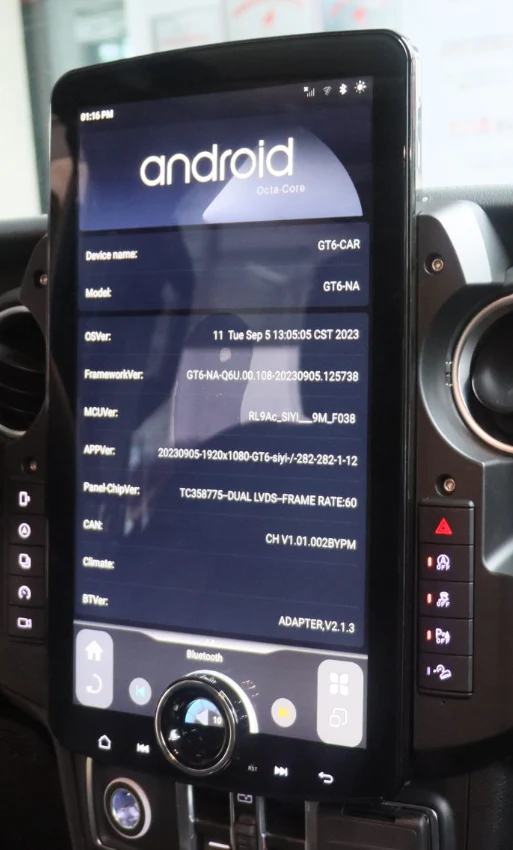

• Android 11 w/Fast Boot
• Qualcomm QCM6125 8Core Processor
  • 8GB Ram
  • 128GB Memory
• Google Play Store App Downloads
• Multi-Function on screen X KNOB
  • Volume, Fan Speed, Temp, etc.
• **USING WIFI** run Google Maps, WAZE or other Data based navigations
• AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
• 3 USB inputs (1 factory input, 1 auxiliary)
• BT 5.0 DR/EDR/BLE
  • Bluetooth may work with certain Bluetooth controlled devices
• USB Music and Video player w/HD Video and Video in motion options
• HDMI Output
• HDMI Input
  • REQUIRES PART NUMBER LW-TSHMDI-IN
• 4X50 Watt built-in amplifier w/DSP & EQ
• 4 Volt RCA Preouts (Front, Rear, Sub)
• SPDIF Output
  • Optical
• EQ
  • 16 Band
  • Low Pass/High Pass Filter
  • Subwoofer
    • Filter
    • Gain Control
• PhoneLink System (Apple & Android compatible)
  • Wireless Apple CarPlay
  • Wired / Wireless Android Auto
  • AirPlay

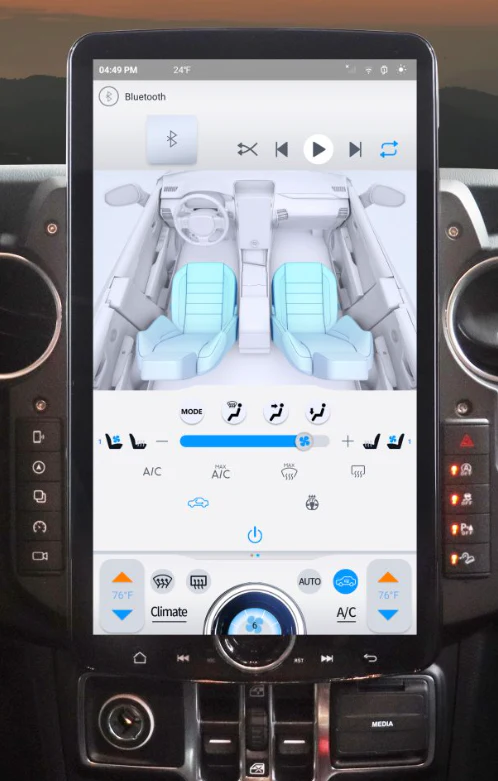

• On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
  • X-KNOB
• 3 Camera inputs (Front, rear, side)
  • Retains Factory Front & Reverse Camera
  • Optional Multi-Cam adapter (TS-JPMCADPT) available to add 6 Camera inputs with onscreen access and CanBus triggers
• Display factory parking sensors (if equipped)
• WIFI for web browser, and streaming apps
  • 2.4 GHz
  • 5G

* May not be compatible with other aftermarket CANBUS devices that are installed in the vehicle….. ie tuners, start stop bypasses, OBD devices, speed calibrators etc.

SIM Card Notes:

If you are planning to add a SIM card to your unit to give it its own cell plan, here are some tips to help you get through the process of sourcing your SIM card as easily as possible:

Just about every cell provider will want you to provide an “IMEI” number to purchase a SIM card for use in any device. This radio’s IMEI number is one digit too short to be a valid number, so even if you supply it, the number will come back as invalid, so there is no use in even logging it or giving it to your provider – IT WILL NOT WORK.

What you will need to do is to go to an actual (Verizon, T-Mobile, ATT, etc.) and NOT a franchise store, and ask to see the store manager.

DON’T WASTE YOUR TIME ON A FLOOR SALESPERSON, AS THEY GENERALLY WILL NOT KNOW HOW TO DO WHAT YOU NEED.

Tell them you need a “BYOD” (Bring Your Own Device) SIM Card. Tell them you do not have an IMEI number for it. Tell them it is a standard tablet. Do not mention that it is a radio – this will only confuse them and prolong the process!

They may argue that they need an IMEI to get a card activated – this is not true. If they refuse to provide a card, go to another factory store and ask to see the manager. Eventually, you will be able to find a person to provide a “BYOD” SIM card.

Once you have the SIM card, pop it into the radio’s SIM Card slot and do a hard reset (paper clip in the RST hole), and it should report as soon as the the radio reboots. You can check this by going to Settings>System>Android Settings>Connections>SIM Card and verifying a phone number on SIM1.

ATT SUBSCRIBERS:

ATT SIM cards need to treat the radio differently than other devices and will require a different configuration to be entered in the Android “Connections” section.

See this support article for more information and configuration instructions: https://www.att.com/support/article/wireless/KM1062162
